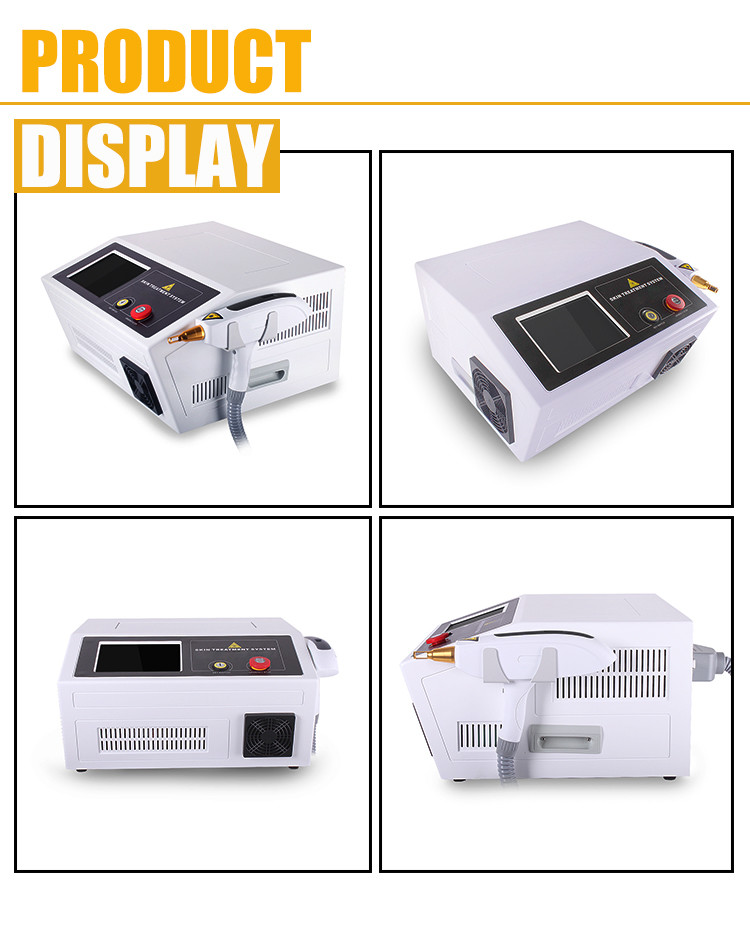

Portable tattoo pigment removal q switched nd yag laser machine
QL-40 use advanced Q-switch technology. Laser can be absorbed by
the blue and black melanin. The melaninwill split into an even more
tiny particles. They are so small that they can bemetabolized by
the lymphatic system and be egested out of the body. Thus thetattoo
or other pigmentations will be removed without any injury to
normaltissue. The treatment is safe and convenient without downtime
or side effects.
The system adopt 600W laserpower supply, energy reach to 1200mj.
Special designed 8` true color touchscreen control panel, easy to
use. Automatic checking water temperature andwater flow, assure the
safety use of machine. With 3 laser tips can do various treatments
of tattoo and pigmented lesions removal,laser toning and so on.
|Laser type||q-switched nd yag laser|
|Wavelength||1064nm, 532nm, carbon assisted tips|
|Aiming laser||Red diode 650nm, on/off|
|Cooling system||automatic water detector cooling+air cooling|
|Power input||230V 60Hz, 110V 50Hz|
1. Remove various tattoo, eye line, eye brow, pigmentation.
2. Remove chloasma, age pigment, nevus, birthmark and Nevus of Ota.
3. Skin tightening, skin whitening, skin toning.
1. Multifunctionsystem: Provide 3 laser tips: 532nm for red and
blue pigment, 1064nm for blackand brown pigment, 1064nm carbon
assisted tip for skin care.
2. Easy to use: Handle with total counting record, plug and play
connector easy to interchange. Red aiming indicator can be turned
3. Safety use: 8 inch true color touch screen with automatic water
recycling and temperature detector,
4. High power: 600 W power supply, 100-1200mj output fluence
adjustable, 1-6 Hz frequency adjustable
5. Super cooling system: longer continuous working hours perfectly
match massive pigment removal needs.
6. Economical: high quality lamp assure flash 2,000,000. Portable
design is economical for transportation.
1 x Main Machine
1 x laser probe
3 x laser tips
1 x doctor glasses
1 x Goggles
1 x Pedal
1 x Power Cord
1 x Funnel with connector
1 x User Manual
