Factory Direct Sale 3 Wavelength Fiber Coupled Diode Laser Hair Removal Machine
Triple wavelength Fiber laser hair removal machine for permanent hair removal.
AS-800S+ fiber laser hair removal system adopts the most advanced triple wavelength 755/808/1064nm fiber laser technology with light weighted ice treatment handle, delivering short pulses to destroy hair follicles with 0.1s fast lightning speed. The fiber laser generator inside the machine not in the handpiece is an absolutely advantage compete to a diode laser, the handpiece is smaller, lighter, and more durable with nothing consumable. 1800W high power and dual cooling system enable a more effective, safe, and comfortable treatment experience.
ADVANTAGE of 3 wavelength Fiber Couple Diode Laser Machine
1. Triple wavelength 755/808/1064nm.
The benefit of 3 wavelengths is utilized for optimum coverage and penetration to reach the ultimate hair removal result. The enlarged spot size achieves faster treatment and saves operators' time.
2. 1800W high power lightning-fast treatment
3. Multi-language interface with preset parameters, easy to use.
4. > 50 million handpiece shots’ lifespan.
5. Laser parts installed in the machine, not handpiece:
- No handpiece burning risk makes a high return on investment.
- Reduce handpiece weight to 0.65kg, comfortable hold for a long time.
- Better cooling than ever, reduced refrigeration system configuration requirements, minimize machine size, and save shipping cost and save space.
6. Unique integrated design laser parts:
- More focused energy output, ensure >90% laser energy conductivity
- -20℃ low-temperature sealing technology, avoid laser burning risk.
- Conical sapphire crystal laser output, uniform and vertical light emission, maximum treatment result.
7. TEC and sapphire contact cooling for durable working and comfortable treatment experience.
8. Handpiece with counter, optional patent small tip for small area hair removal.

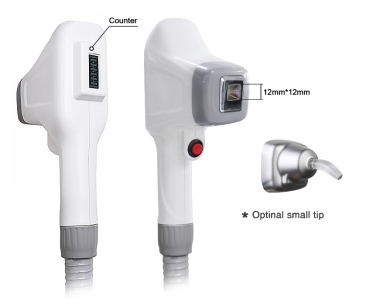

Handle Photo
Parameters of 755nm, 808nm, 1064nm Fiber Couple Diode Laser Machine
| Laser type | Fiber Coupled Laser |
| Wavelength | 755nm, 808nm, 1064nm |
| Laser power | 1200W |
| Pulse width | 5-600ms |
| Energy density | 1-120J/cm2 |
| Frequency | 1-10Hz |
| Skin type | I-VI |
| Screen | 15 inch touch screen |
| Spot size | 12mm*12mm |
| Cooling type | TEC+Sapphire contact cooling |
| Cooling temperature | ≤5℃ |
| Machine size | 18*40*36CM |
| Net weight | 10kg |

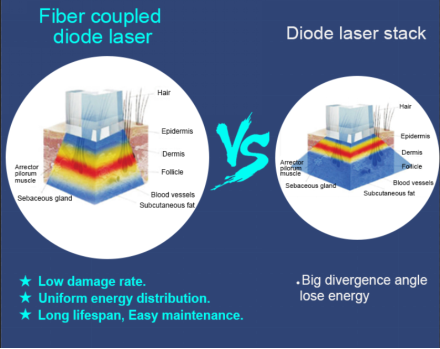

What is Fiber Coupled Diode Laser Technology?
The light generated by multiple diode laser is coupled into a single-core multimode fiber by micro lens array, in order to deliver light to the target place. This innovative design assures uniform energy distribution, low damage rate, long lifespan, and easy maintenance of the diode laser. The Fiber Coupled Laser locates inside the mainframe instead of the handpiece. Therefore, laser energy is transferred by fiber to the target, which significantly increases the energy efficiency& handpiece life span. Lighter handpieces make it more convenient for doctors, while powerful cooling maximizes patients' comfort.

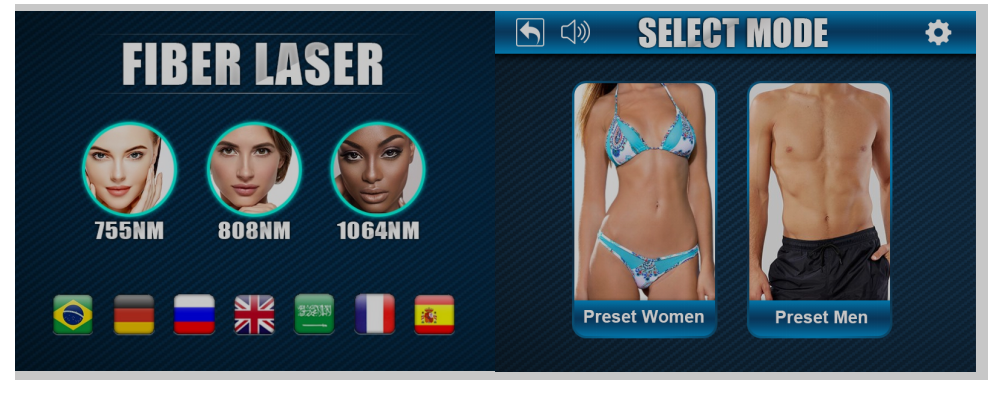

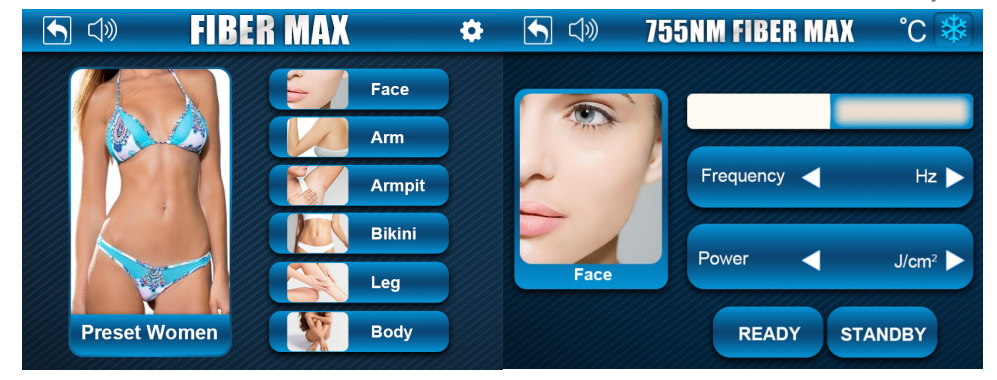

Triple wavelength Fiber Laser Machine interface
